ENGWE Electric Bike

1. Key Specifications

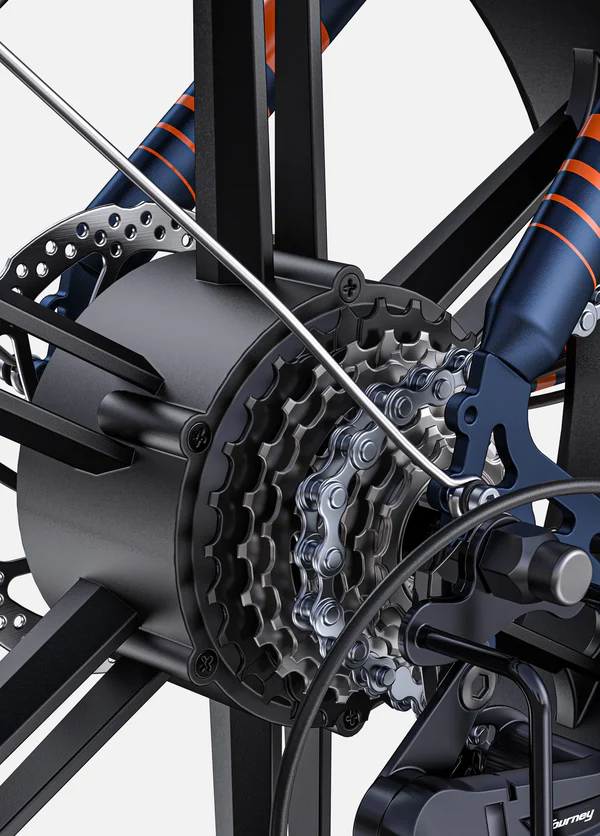

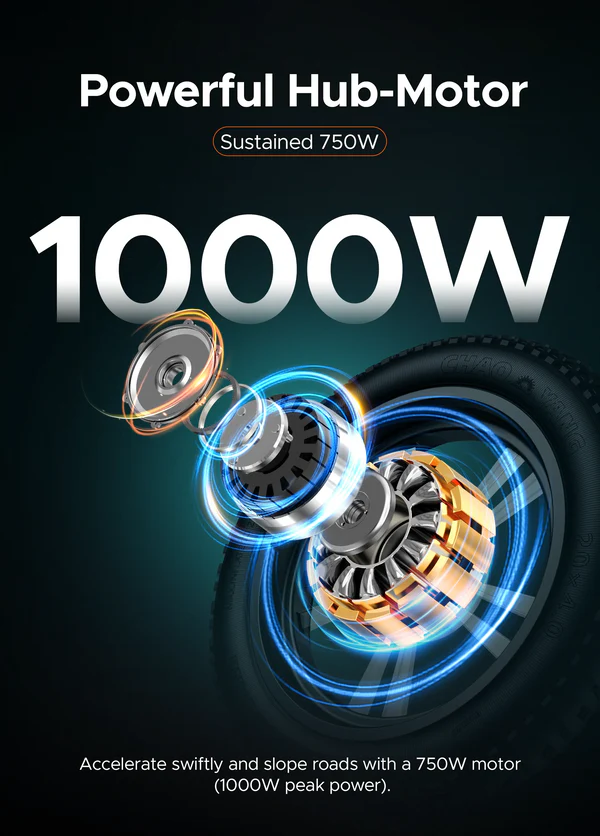

• Motor: 750W brushless rear hub motor (peaking at 1000W–1200W), delivering a top speed of 28 mph (45 km/h) and capable of climbing 10°–30° inclines.

• Battery & Range:

  • 48V/13Ah–26Ah lithium-ion battery (dual-battery option available), offering 34–94 miles (55–150 km) range depending on mode and terrain.

  • Charging time: 5–8 hours per battery.

• Weight & Load:

  • Bike weight: 34.8–41.5 kg (77–92 lbs).

  • Max load: 120–150 kg (265–330 lbs).

2. Design & Features

• Suspension & Tires:

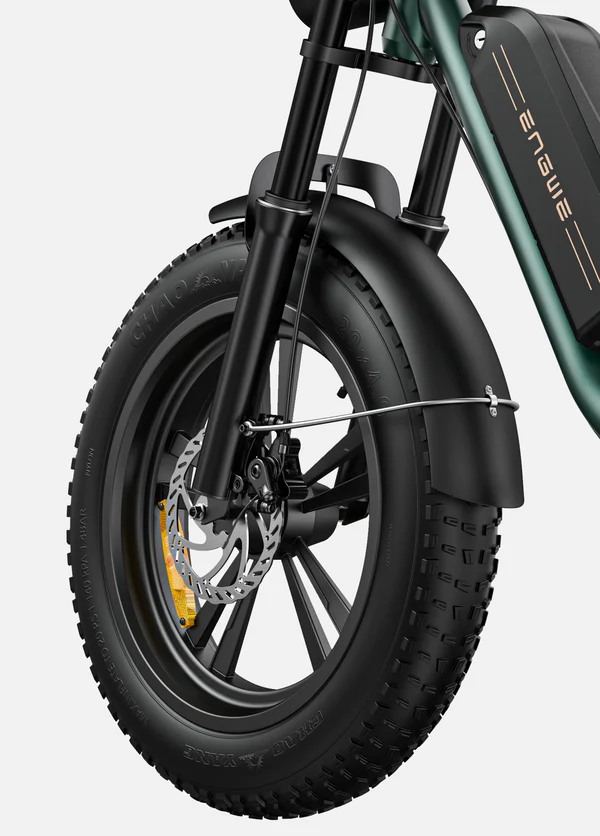

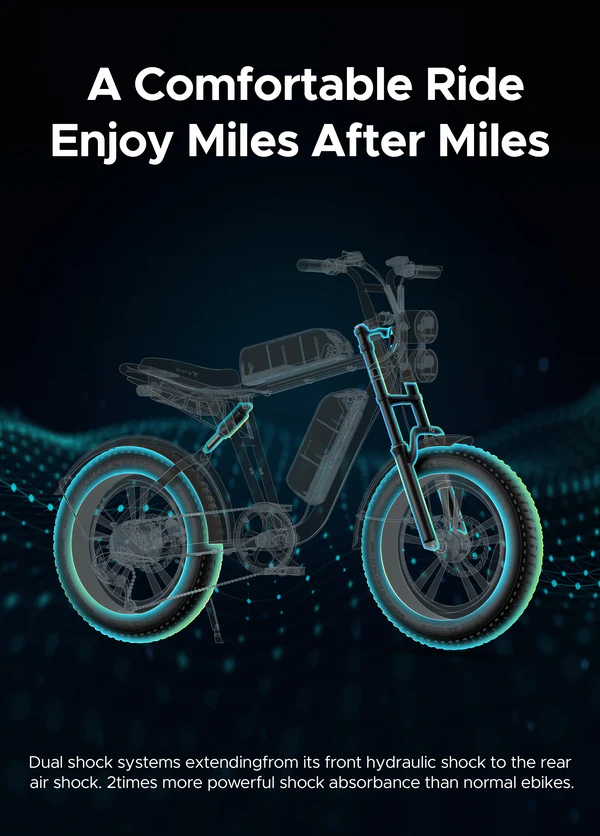

  • Full suspension (front hydraulic fork + rear air shock) and 20×4″ fat tires (Chaoyang/Kenda) for off-road traction.

• Braking & Safety:

  • Dual mechanical disc brakes (160mm rotors); some users note they’re “grabby” and recommend hydraulic upgrades.

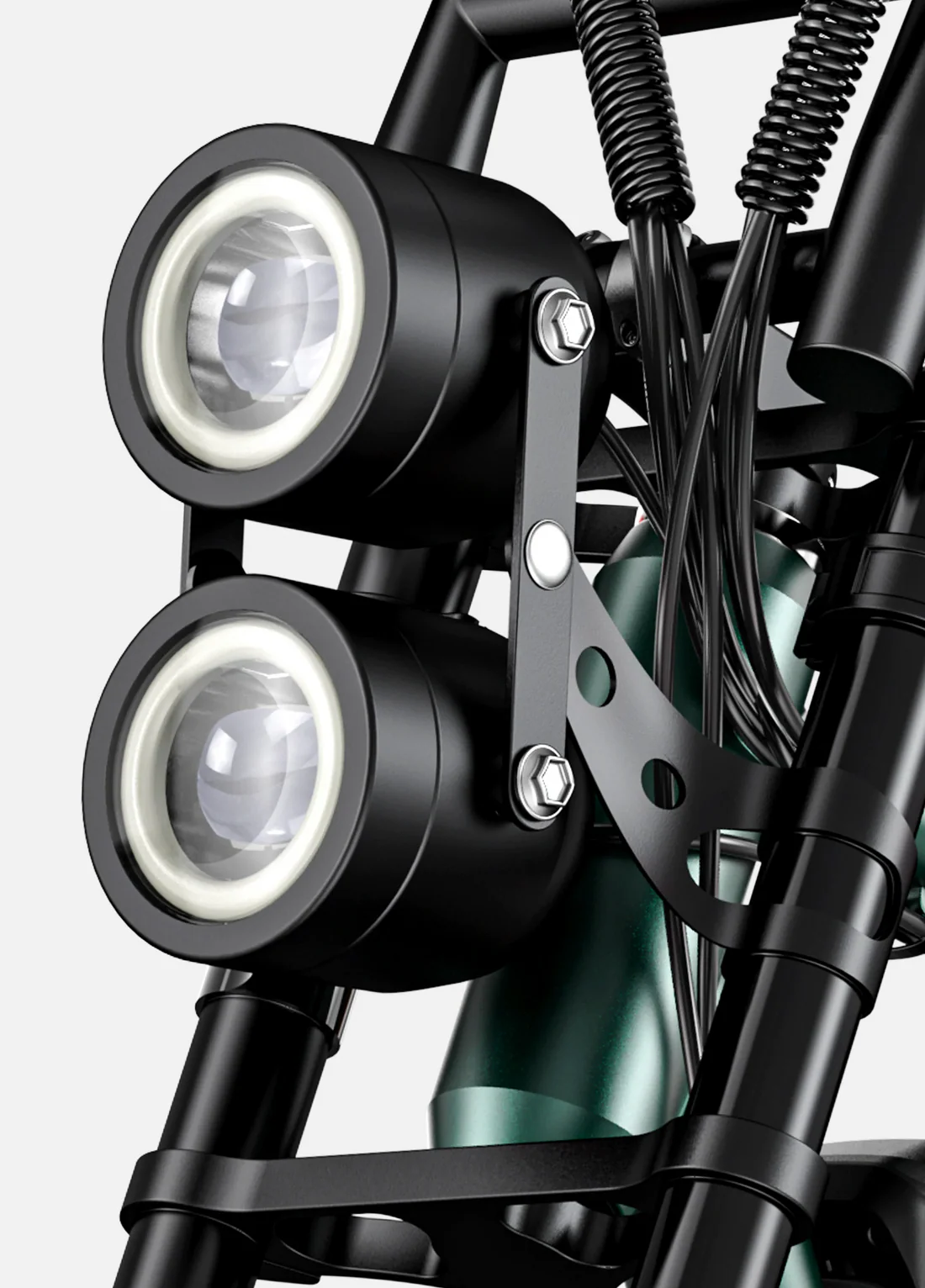

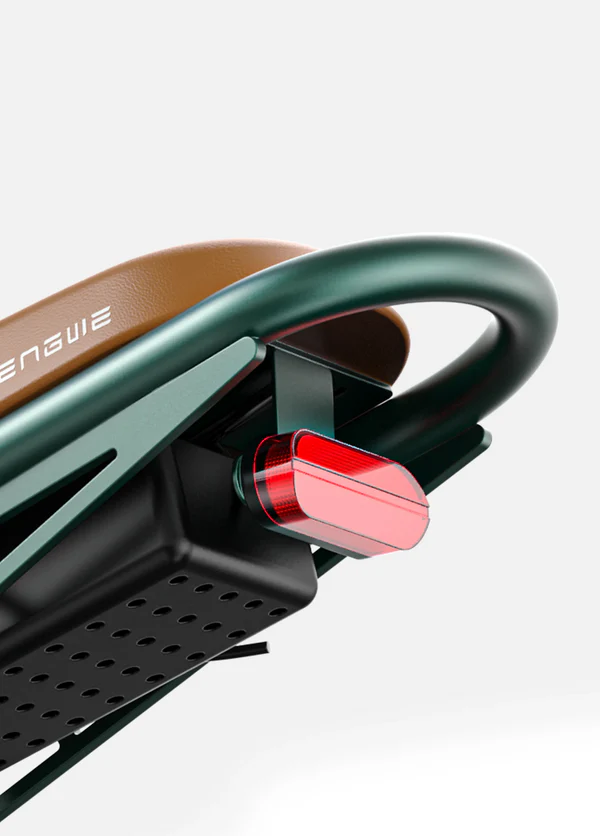

  • LED lighting: Dual headlights, taillight, and turn signals.

• Smart Tech:

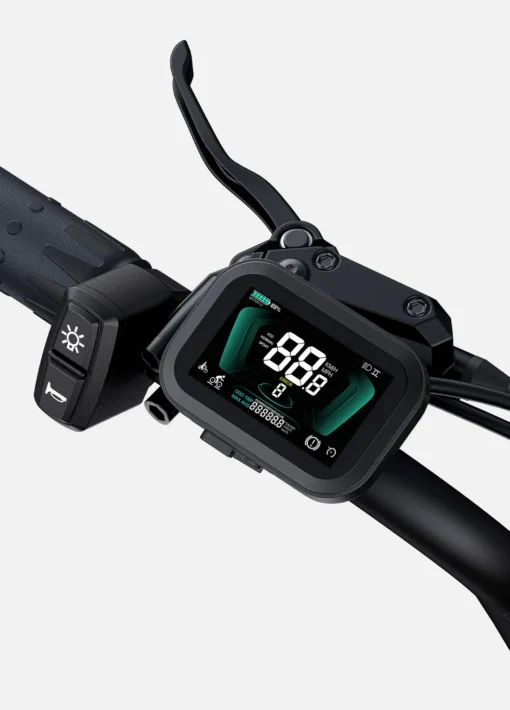

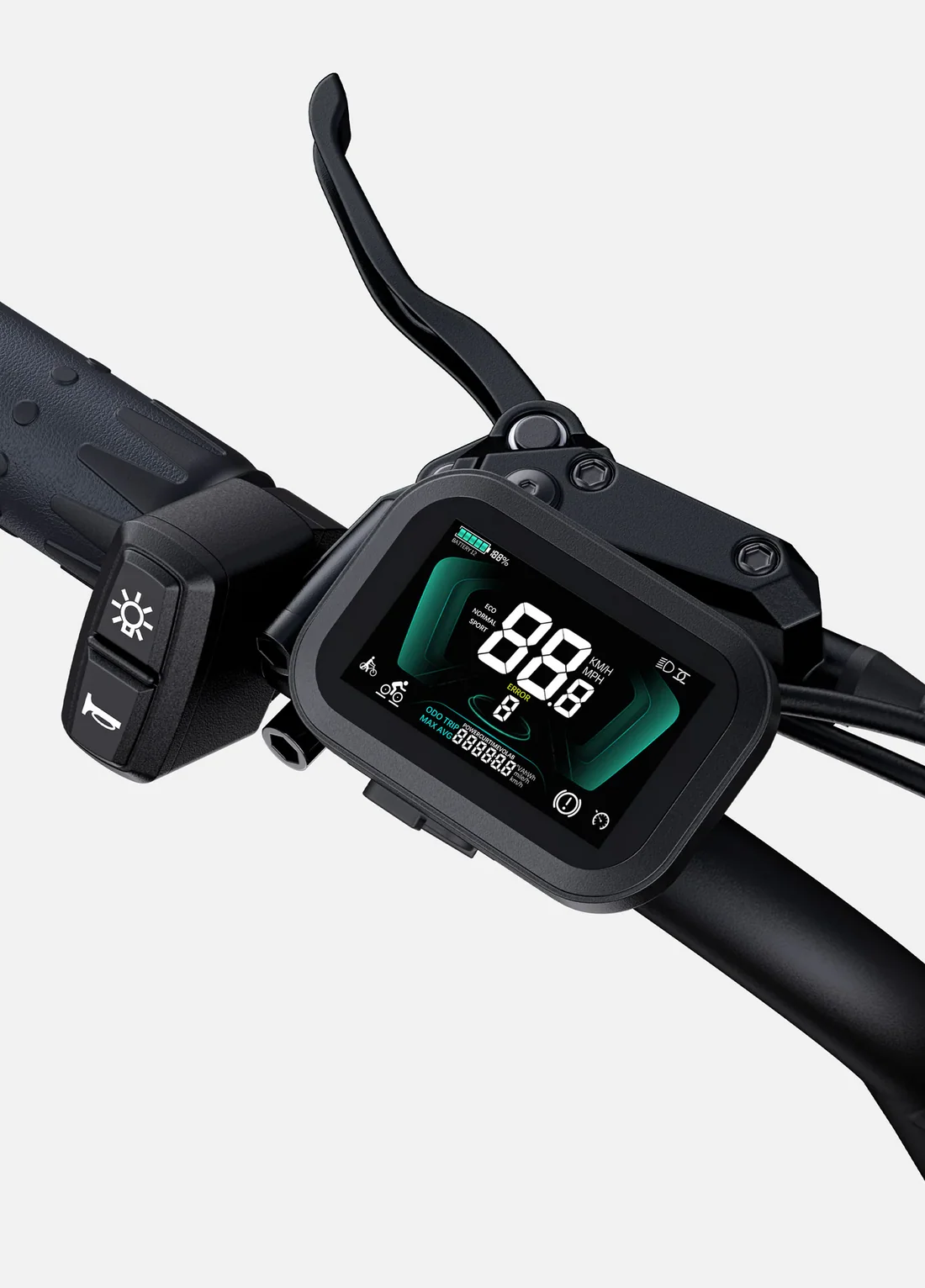

  • LCD display showing speed, battery, and PAS levels (no app connectivity).

  • 7-speed Shimano Tourney drivetrain.

• Aesthetics:

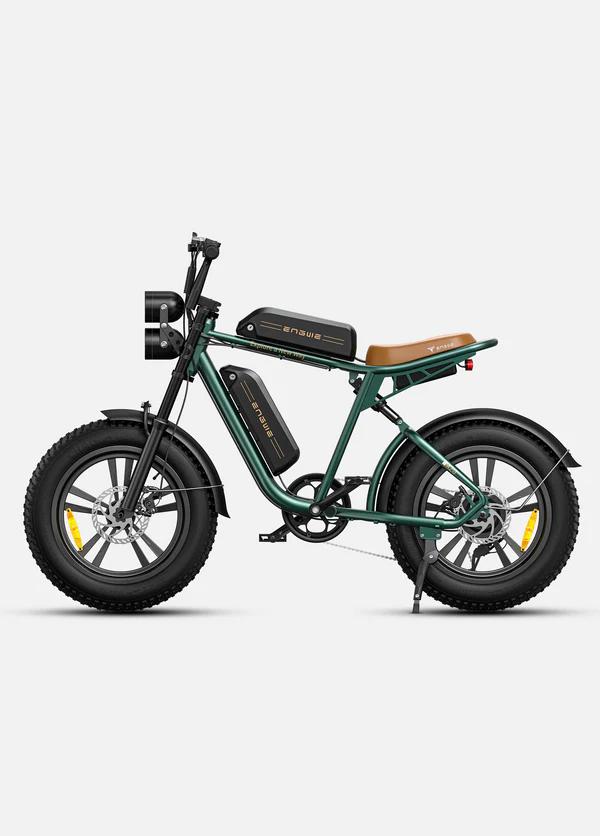

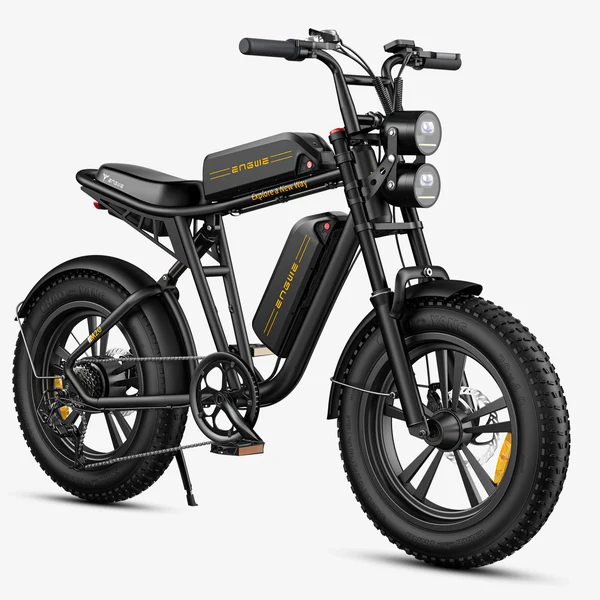

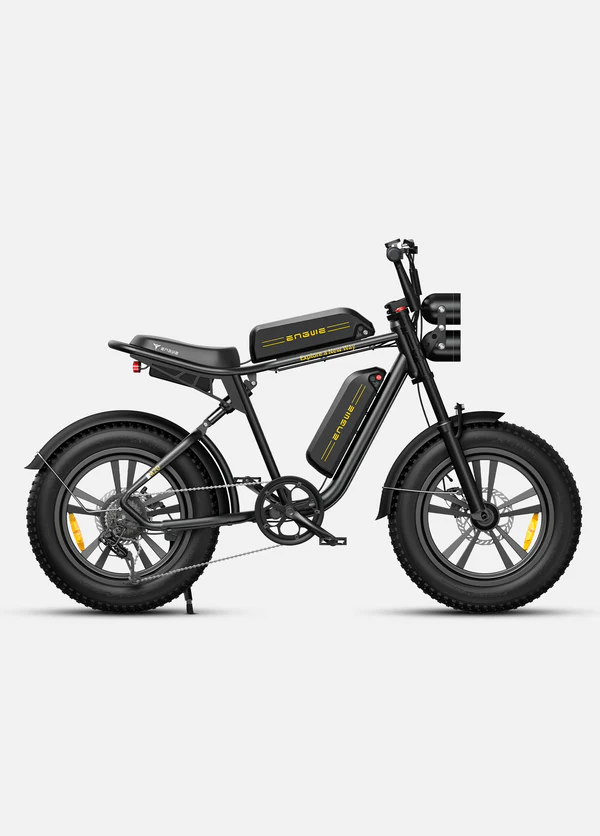

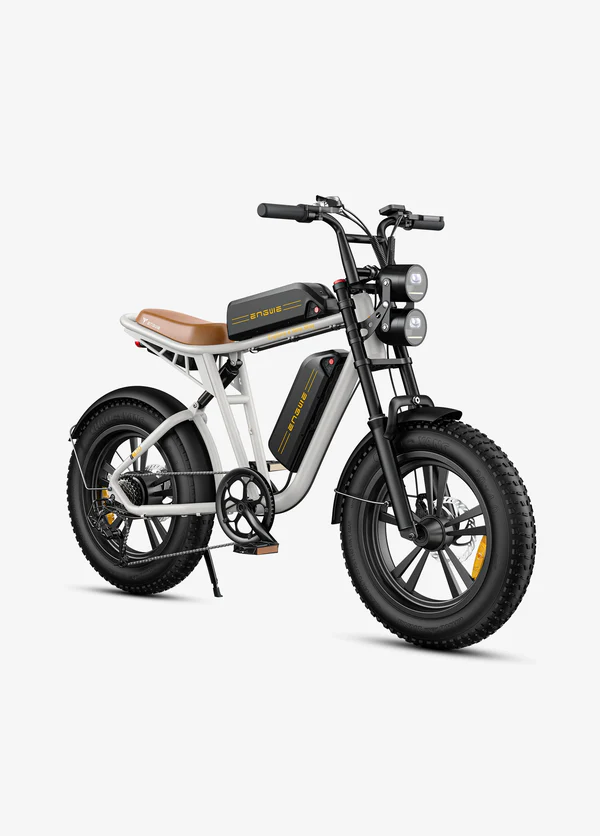

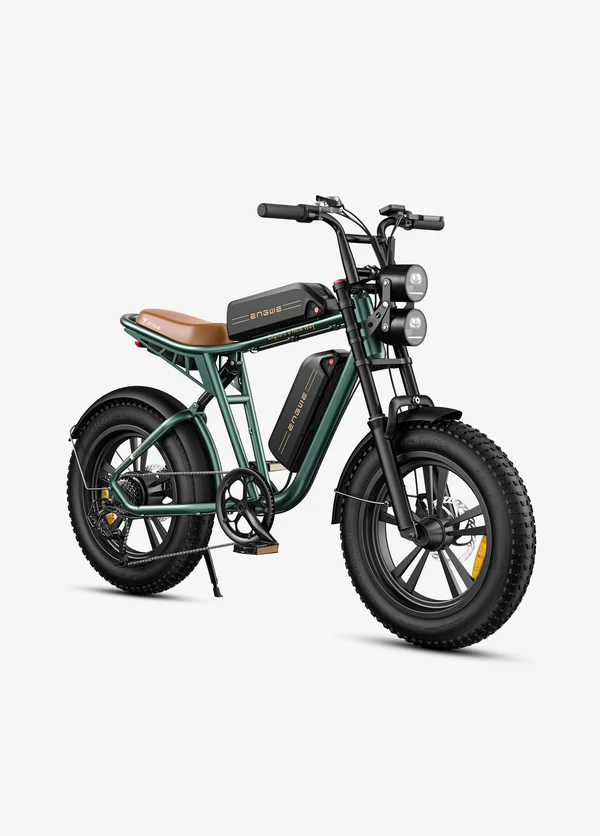

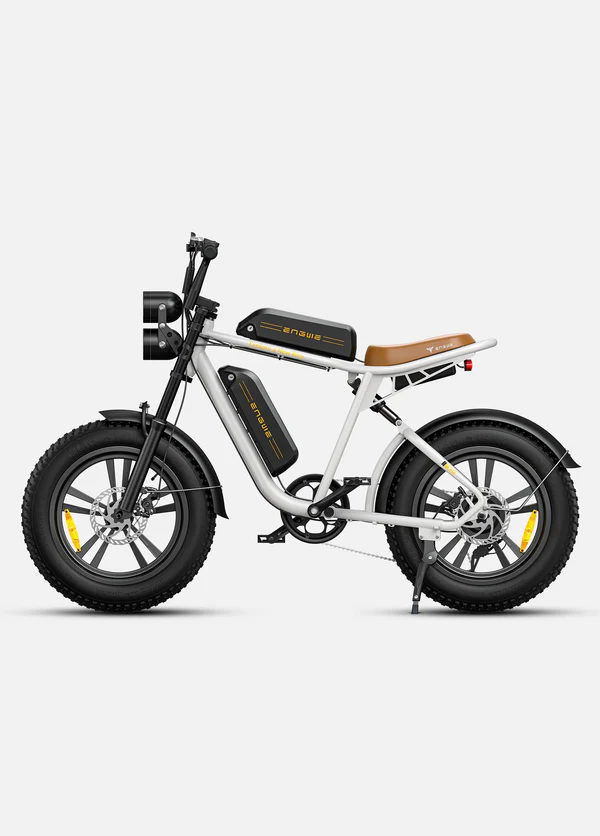

  • Café racer-style design with aluminum alloy frame, available in black, green, or white.

3. Performance Highlights

• Power Delivery: Strong acceleration but “ghost pedaling” at high speeds due to low-geared cassette.

• User Feedback:

  • Pros:
    ✅ Affordable (€1,099–$1,599) for full-suspension e-bikes.
    ✅ Comfortable ride on rough terrain.
    ✅ Dual-battery option extends range significantly.

  • Cons:
    ❌ Heavy (35+ kg) and awkward to pedal for taller riders (fixed seat height).
    ❌ EU legality issues: Exceeds 250W/25 km/h limits, classified as a moped.

4. Pricing & Warranty

• Price:

  • Single battery: $1,299 .

  • Dual battery: $1,599.

• Warranty:

  • 1–2 years for motor/frame, 6 months for battery.

Verdict

The ENGWE M20 is a budget-friendly, off-road-capable e-bike with standout design and dual-battery range. Ideal for urban commuters and thrill-seekers, though its weight and legal restrictions (especially in the EU) may deter some.

Alternatives:

• For higher-end components: Consider the Super73 R-series (pricier).

• For lighter options: ENGWE T14 (28.5 kg).

For assembly tips or troubleshooting, refer to YouTube tutorials or official support.
